BEE SWEEPER

Electric device to sweep off bees

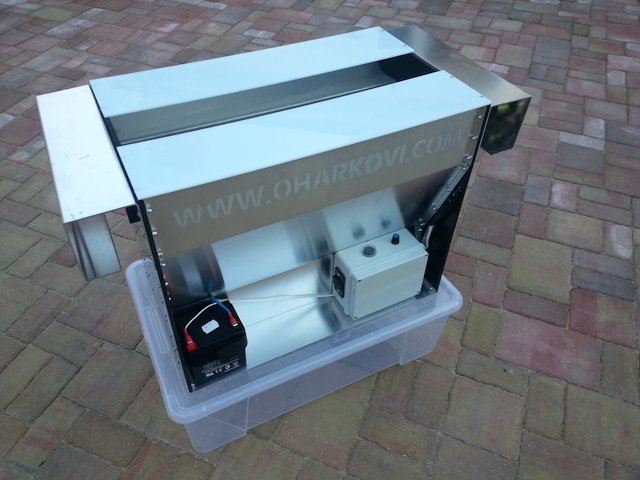

20160703 195658 web



Bee sweeper is an automatic electric device to sweep off bees from frames. It is a product of our own design protected by an industrial design.

The sweeper is lightweight and washable. It is made of plastic material with UV protection and aluminum sheet.

The sweeper is powered by a 12V battery inserted from the side. The battery has a capacity of 4 Ah and is charged by a solar panel with a power of 4.5 Watts.

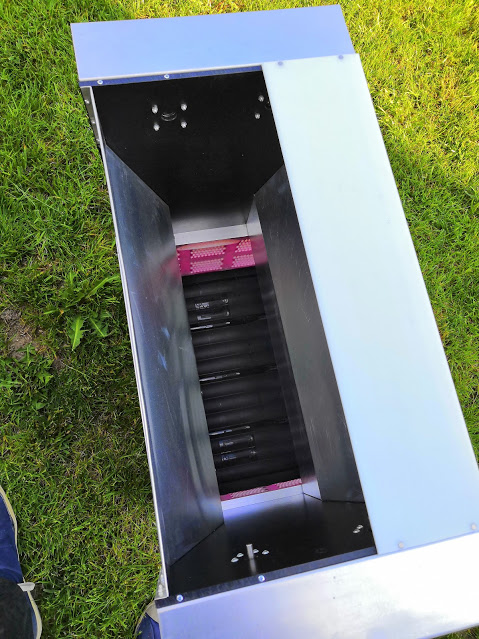

The brushes are plastic, easily replaceable. The infrared sensor ensures contactless switching of the motors with the frame inserted.

The sweeper can be powered via a connector designed for connection to a car lighter or 12V car battery.

The lower catch box is not included in the delivery. As of May 2017, it is an optional accessory.

The battery is part of the delivery only for the Czech Republic and Slovakia.

We offer a bee sweeper in a version with solar charging or without solar charging.





Technical parameters

Technical parameters:

  • Dimension (LxHxV): 64x40x30cm (enlarged version 74x40x30cm)
  • Inner length: 48cm (enlarged version 58cm)
  • Weight: cca 5,5kg (without battery), 7 kg (with battery)
  • Length of brush: 46,5cm
  • Detection system: infra sensor with 7cm distance
  • RPM: max. 650(regulated with potenciometer - PWM 0-100%)
  • Power source: battery 12V (4,5Ah) or 12V (car cigarette socket with included 10A fuse)
  • Cable length: 5m
  • Material: plast with UV stabilization, aluminium sheet





Package contents

Package contents:

  • 1x BEE SWEEPER - Electric device to sweep off bees
  • 1x 5m cable for connecting an external battery
  • 1x solar panel (only version with solar charging)
  • 2x plastic cover of bee sweeper
  • 1x bottom box (optional accessory)
  • 1x battery 12V 4,5 Ah (only for EU countries)
  • 1x instruction manual





Instruction Manual

Instruction Manual


The product can be ordered using the contact form below or through our contacts.

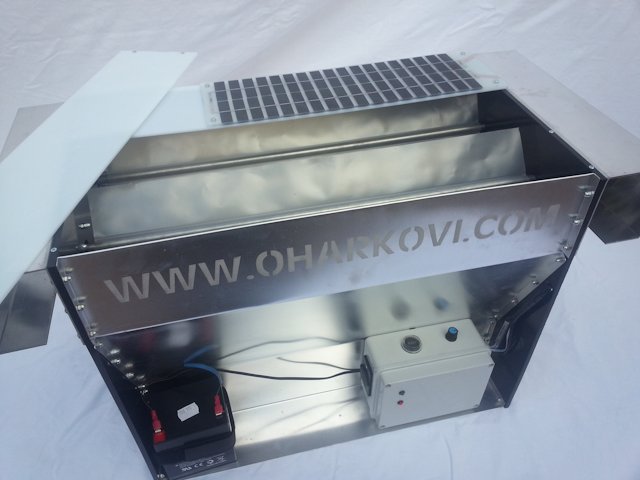

20160704 180423 web

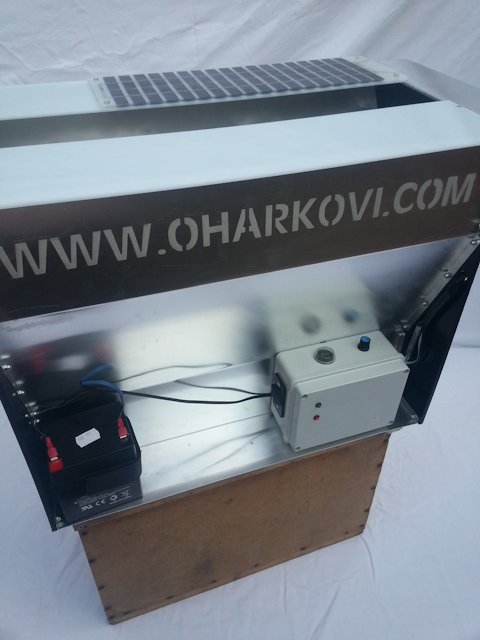

20160704 180654 web

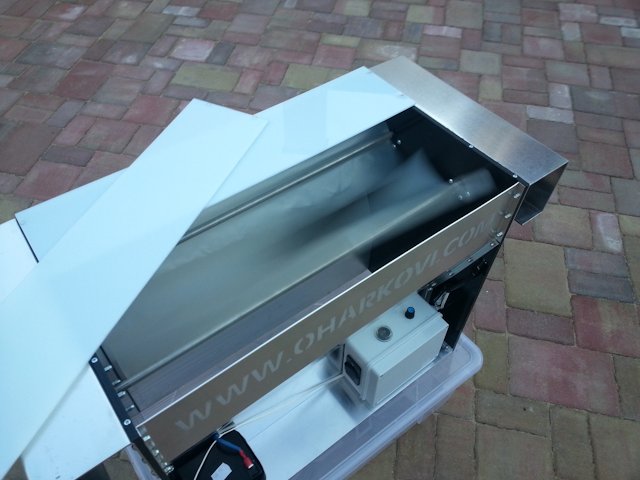

20160703 195708 web

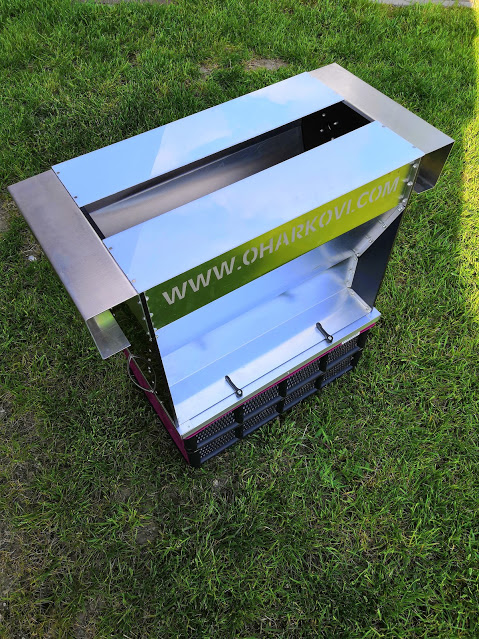

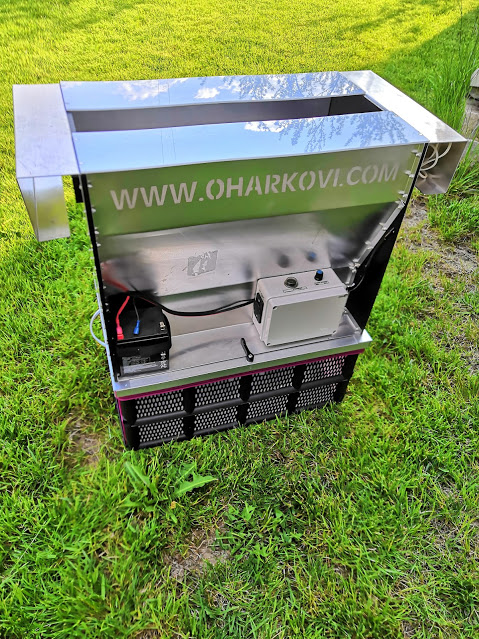

Our box under the sweeper

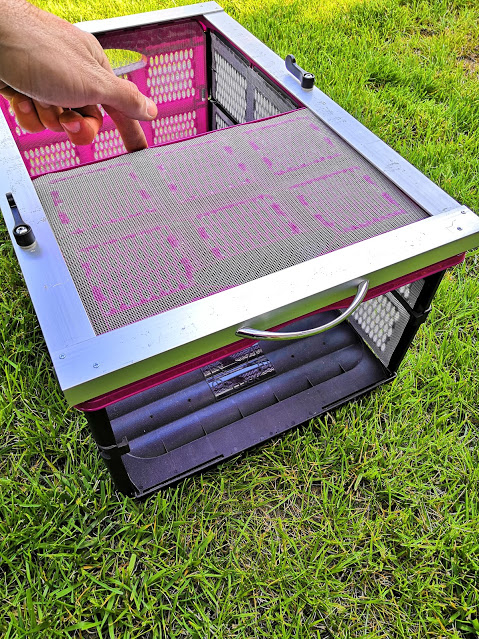

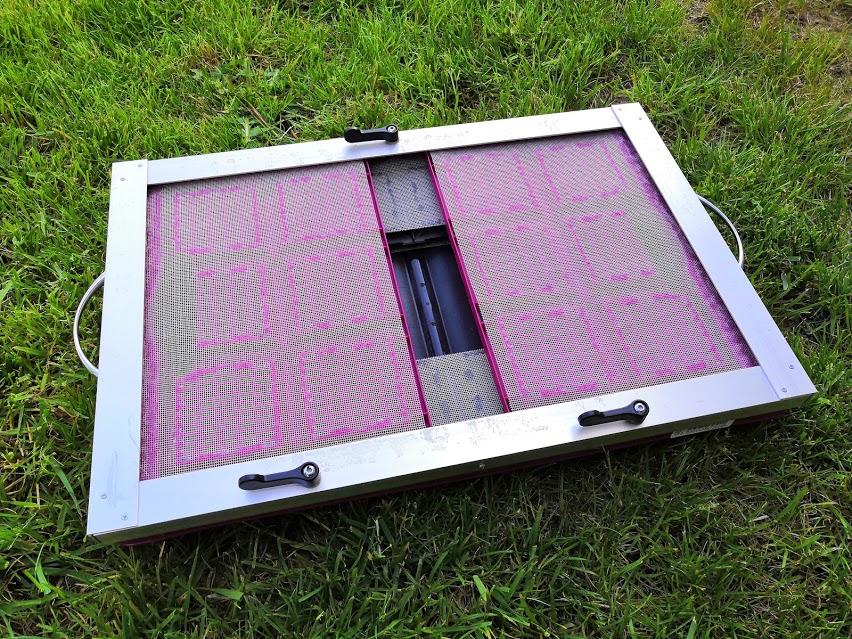

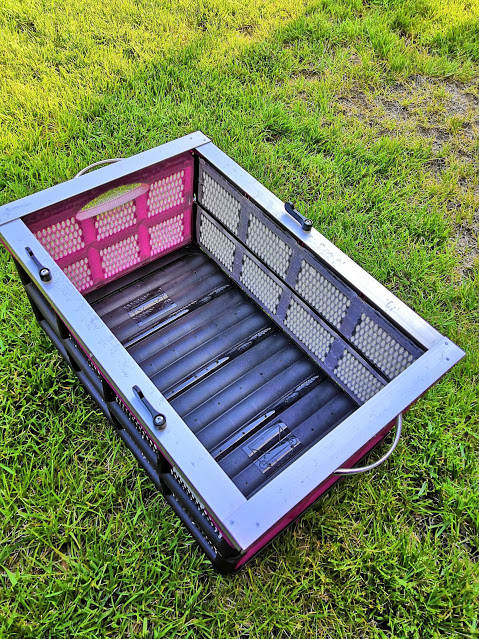

Folding box with aluminum frame
